Printseek Series Turbo All-in-One Multi/Single Pass Digital Printing machine
Product Details:
| Place of Origin: | Suzhou, China |
| Brand Name: | GeRun |
| Model Number: | G5-2816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | RMB Meet to talk about |
| Payment Terms: | T/T |
Detail Information | |||
| Product Name: | Printseek Series Turbo All-in-One G5-2816 Multi/Single Pass Digital Printing machine | Rip Software Rip: | Maintop |
|---|---|---|---|
| Picture Format: | TIFF,JPG,PDF,PNG | Print Head: | EPSON Industrial ALL-MEMS Print Head |
| No.s Of Print Head: | 16 | Max. Printing Width: | 530mm |
| Media Thickness: | 2-20mm | Max. Printing Speed: | 1500m²/h |
| Printingresolution: | 600*600/600*1200DPI | ||
| High Light: | Printseek Series Turbo All-in-One G5-2816，1200 dpi inkjet printer，Multi/Single Pass Digital Printing machine | ||
Product Description
Printseek Series Turbo All-in-One Multi/Single Pass Digital Printing machine
Gerun Turbo All-in-One, the one focuses on effectiveness more
Emphasize Single Pass：60cm Singlepass allowance less switch between single & multi pass
High Accuracy Switching Structure：Verticle main beam with high accuracy locating locking in switching unit
Super Wide & Deep Frame：Feeding width 2800mm for wide paper Deep platform for high speed stability
Gerun Turbo All-in-One, the one focuses on effectiveness more

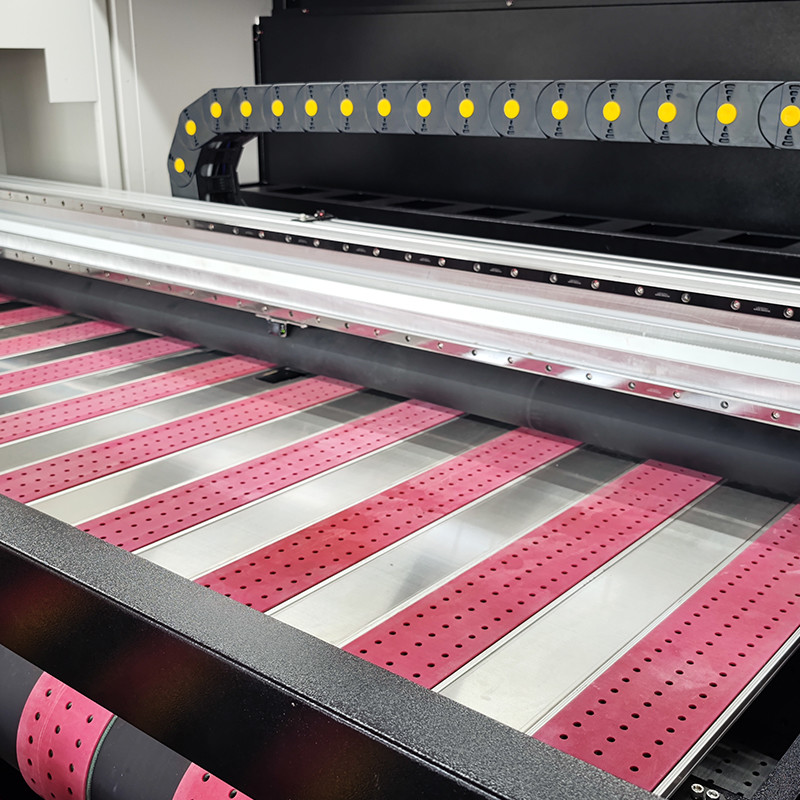

1. Long Life belt：Stengthened mateiral long serice life transmission belt
2. Powerful Function：Variable data, ERP connection, oneclick QR code scanning for system work
3. High Capacity Board：Control board based on singlepass High data capbility for high speed output
4. Strong Feeding：Front edge feeding 5 axis 5 servo More wheels for high loading
PARAMETERS
Model | G5-2816 |
Rip Software Rip | Maintop |
Picture Format | TIFF,JPG,PDF,PNG |
Print Head | EPSON Industrial ALL-MEMS Print Head |
No.s of Print Head | 16 |
Ink type and color | CMYK Water Based Ink |
Max. Printing Width | 2800mm |
Media Thickness | 2~20mm |
Max. Printing Speed | 1500m²/h |
Min. Feeding Width | 350mm*450mm without scoring, 350mm*660mm with scoring |
Max. Feeding Width | Width 2.8 meters, unlimited length |
Printingresolution | 600*600/600*1200DPI |
Feeding Mode | Auto feeding |
Operating System | Windows 7 or Later Version |
Working Environment | 18～30℃, humidity: 50%～70% |
Electric voltage | 380V±10% 50/60HZ |
Total Power | 35KW |
Printer size(L*W*H) | 4803*4604*1960mm |
Printer weight | 3800kg |
